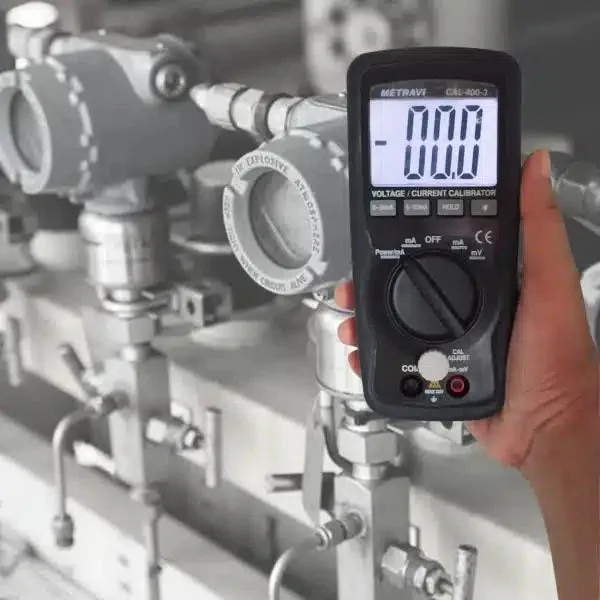

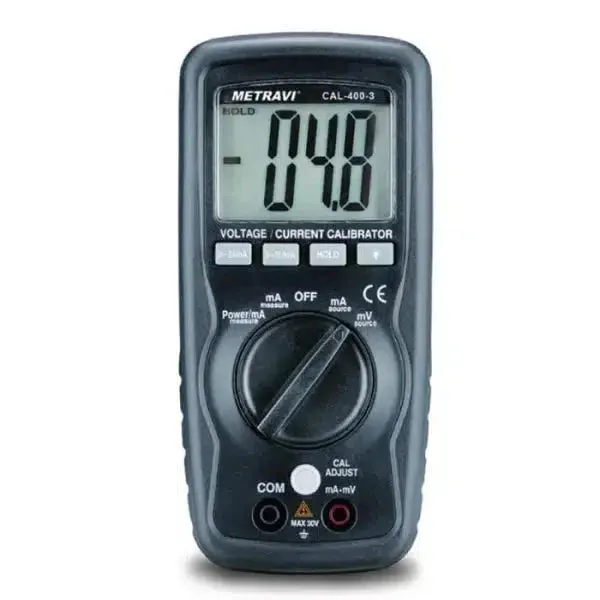

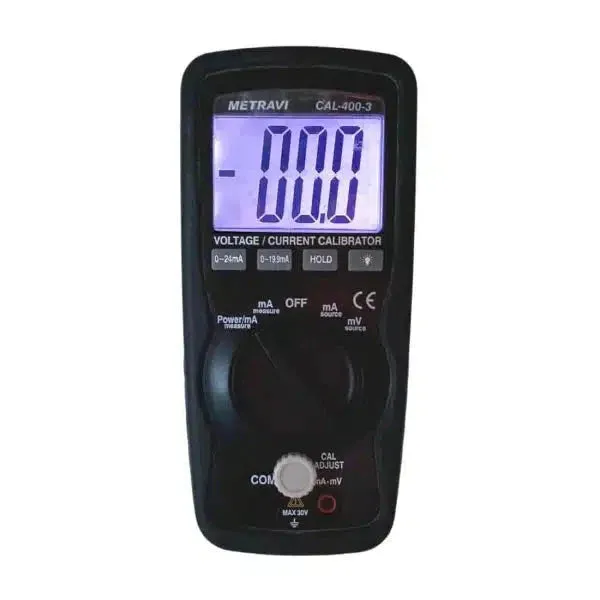

Expertly calibrate your millivolt (mV) and milliampere (mA) instruments with the Metravi CAL-400-3 mV mA Calibrator. This versatile, portable calibrator is designed for high-precision calibration and measurement of process signals, ensuring accuracy and reliability in various industrial applications. Compact and user-friendly, it simplifies the calibration process, allowing technicians to achieve precise readings with ease.

Key Features:

• Portable Calibration Solution: Ideal for calibrating process devices and measuring process signals in various industrial settings.
• Four-in-One Functionality: Provides the quality and accuracy of a handheld calibrator, capable of both sourcing and measuring mV and mA signals.
• Two-Wire Current Loop Measurement: Powers or measures a two-wire current loop, offering flexibility for field calibration.
• LCD Display: Large, easy-to-read LCD with a maximum display of 1999 counts.
• High Accuracy: Offers a precise measurement with an accuracy of ±0.25%, ensuring reliable results every time.
• Current and Voltage Range:
  • Current Source: 0 – 19.99 mA / 0 – 24 mA.
  • DC mV Source: -199.9 mV to ±199.9 mV.
  • Current Measurement: 0 – 19.99 mA / 0 – 24 mA.

Specifications:

• Display: LCD display with 1999 counts.
• Current Source Range: 0 – 19.99 mA / 0 – 24 mA.
• DC mV Source Range: -199.9 mV to ±199.9 mV.
• Current Measurement Range: 0 – 19.99 mA / 0 – 24 mA.
• Accuracy: ±0.25% for current and mV measurements.
• Power & Current Measurement of Two-Wire Loop: 0 – 19.99 mA / 0 – 24 mA with ±0.25% accuracy.

Applications:

• Process Control and Instrumentation: Ideal for calibrating industrial process devices such as transmitters, sensors, and controllers.
• Field Calibration: Suitable for technicians and engineers who require a portable solution for on-site calibration.
• Electrical Maintenance: Ensures accurate calibration and measurement of mV and mA signals, essential for maintaining system integrity in industrial environments.

The Metravi CAL-400-3 mV mA Calibrator offers a blend of portability, precision, and versatility, making it a reliable tool for professionals in process control and instrumentation.
