Description
Our USB to RS232/RS422/RS485 adapters are an easy way to connect serial devices to a USB port on your computer. They support RS232, RS422 and RS485 modes.
These adapters offer a great deal of flexibility as they can be switched to RS232, RS422 or RS485 mode and so are suitable for a wide range of applications. Each port has options such as termination and biasing for RS485 and indication LEDs for Power, Tx and Rx for easy diagnostics.
The single-port model can be switched to RS232, RS422 or RS485.
On the 8-port and 16-port versions, each port can be switched to RS232, RS422 or RS485 modes individually allowing a mixture of devices to be connected.
With their multiple serial modes and easy to install drivers for a range of operating systems, these adapters are ideal for adding one or more RS232/RS422/RS485 ports to your computer.
- Based on the renowned FTDI USB-Serial chipsets and drivers
- Microsoft Windows® WHQL-certified, macOS and Linux drivers
- Each RS232/RS422/RS485 port can appear as a Virtual Com Port allowing easy use with existing application programs
- Multi-port units create a separate COM port for each port with separate settings (such as baud rate and flow control) per port
- Ports can also be accessed using the FTDI D2xx DLL functions
- Signals (note that access to the signals depends on the connector type)
- RS422: TxD , TxD-, RxD , RxD-, GND, RTS , RTS-, CTS , CTS-
- RS485 4-wire: TxD , TxD-, RxD , RxD-, GND
- RS485 2-wire: Data , Data-, GND
- RS232: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
- RS232/422/RS485 signals via DB-9 connectors
- Terminal Block also available on single port model (subset of signals)
- Automatic Hardware (RTS / CTS) flow control on RS232/RS422 models on DB-9
- Software (X-on/X-off) flow control
- Power and Tx/Rx LED indicators help to confirm operation and assist in troubleshooting
- Available in 1, 8 and 16-port versions
- USB Type-B connector
- 1-port model has a compact metal enclosure and is powered from USB
- 8-port and 16-port models are rack-mountable with Internal mains PSU
Feel free to browse through the corresponding datasheet for more information.
Document
| Part Number | Document Type | Version | File |
| ES-U-3001-MB ES-U-3008-RM ES-U-3016-RM |
Manual | 2.3 | |
| All Products | Drivers Installation Guide | 1.1 |
Downloads
| Driver |
Order Information
| SKU | Ports | Housing | Connector |
|
ES-U-3001-MB (Updated version from ES-U-3001-M [USB-COMi-M] to support higher data throughput) Din Rail Bracket (DR-201) the rank mount clip is available for sales. If required, please contact us at |
1 | Metal | USB-B |
| ES-U-3008-RM | 8 | Metal | USB-B |

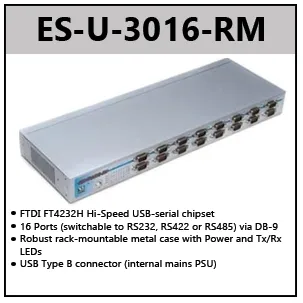

| ES-U-3016-RM | 16 | Metal | USB-B |
