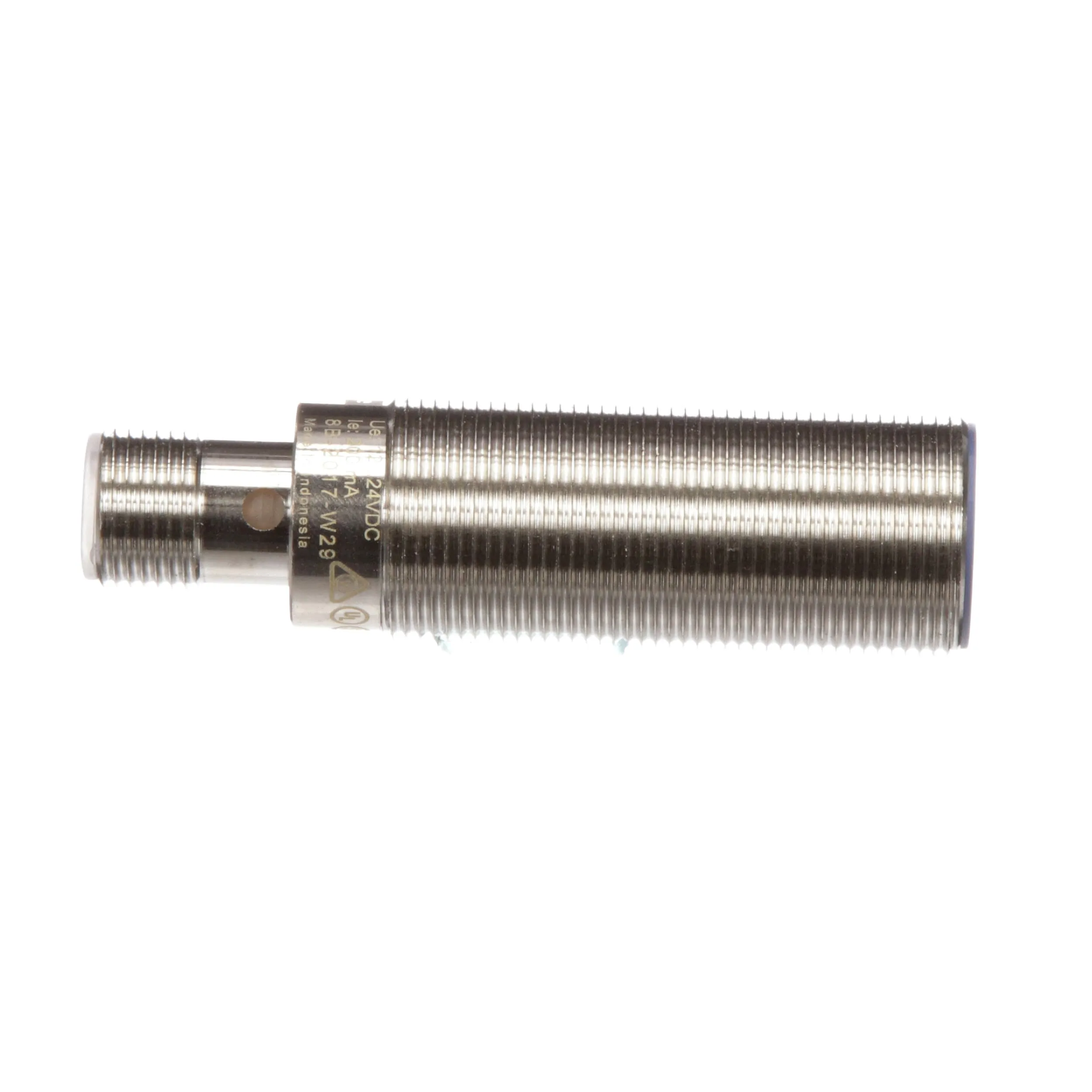

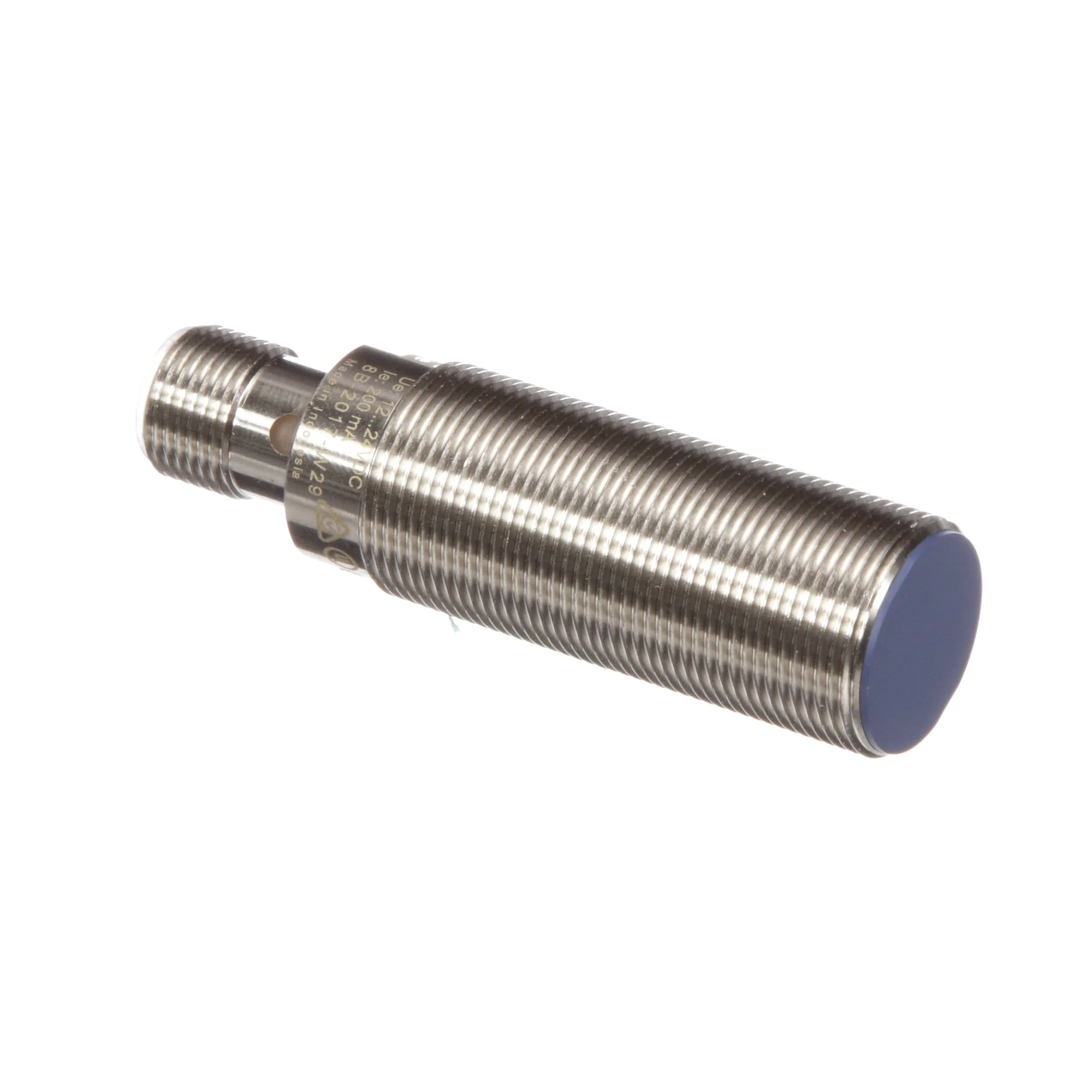

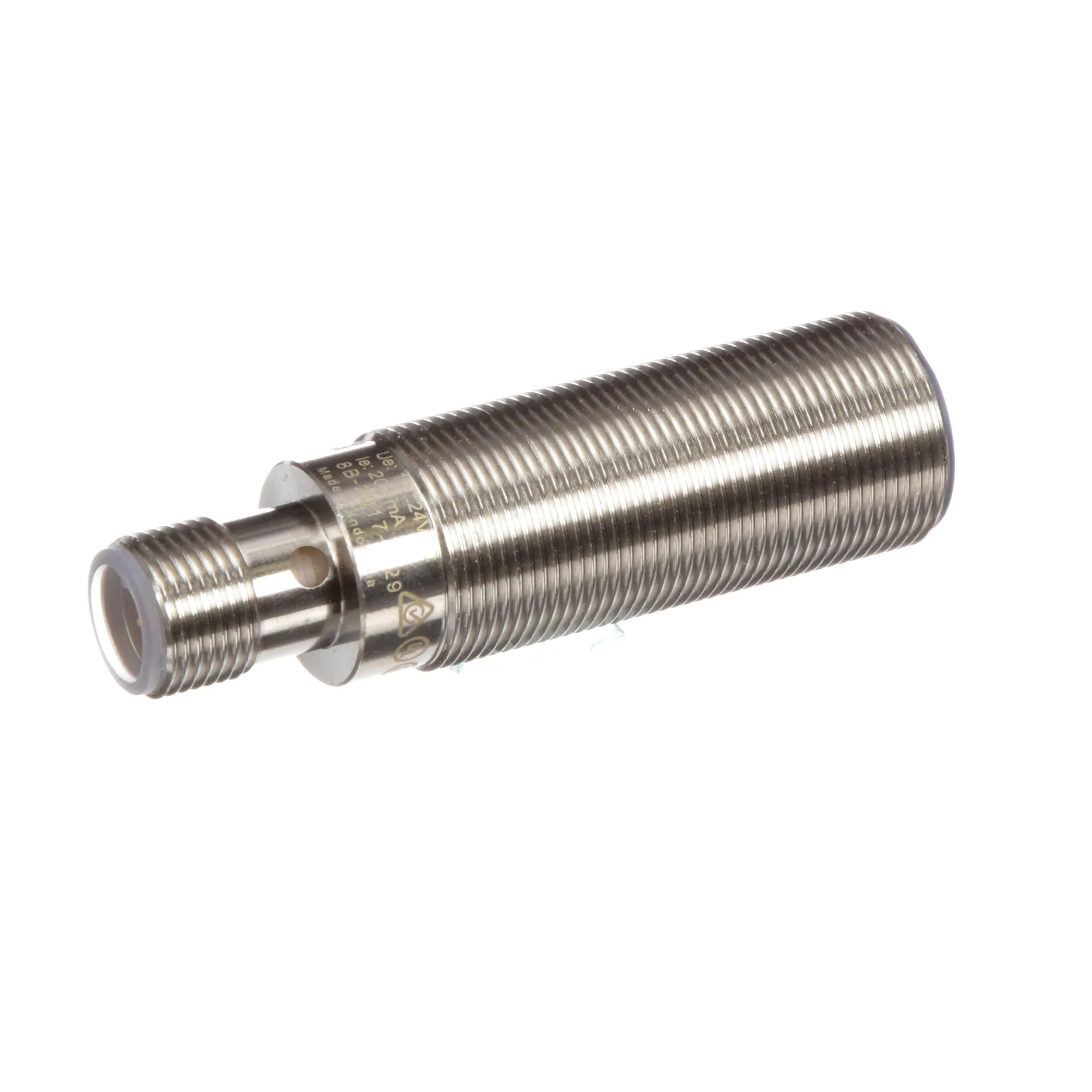

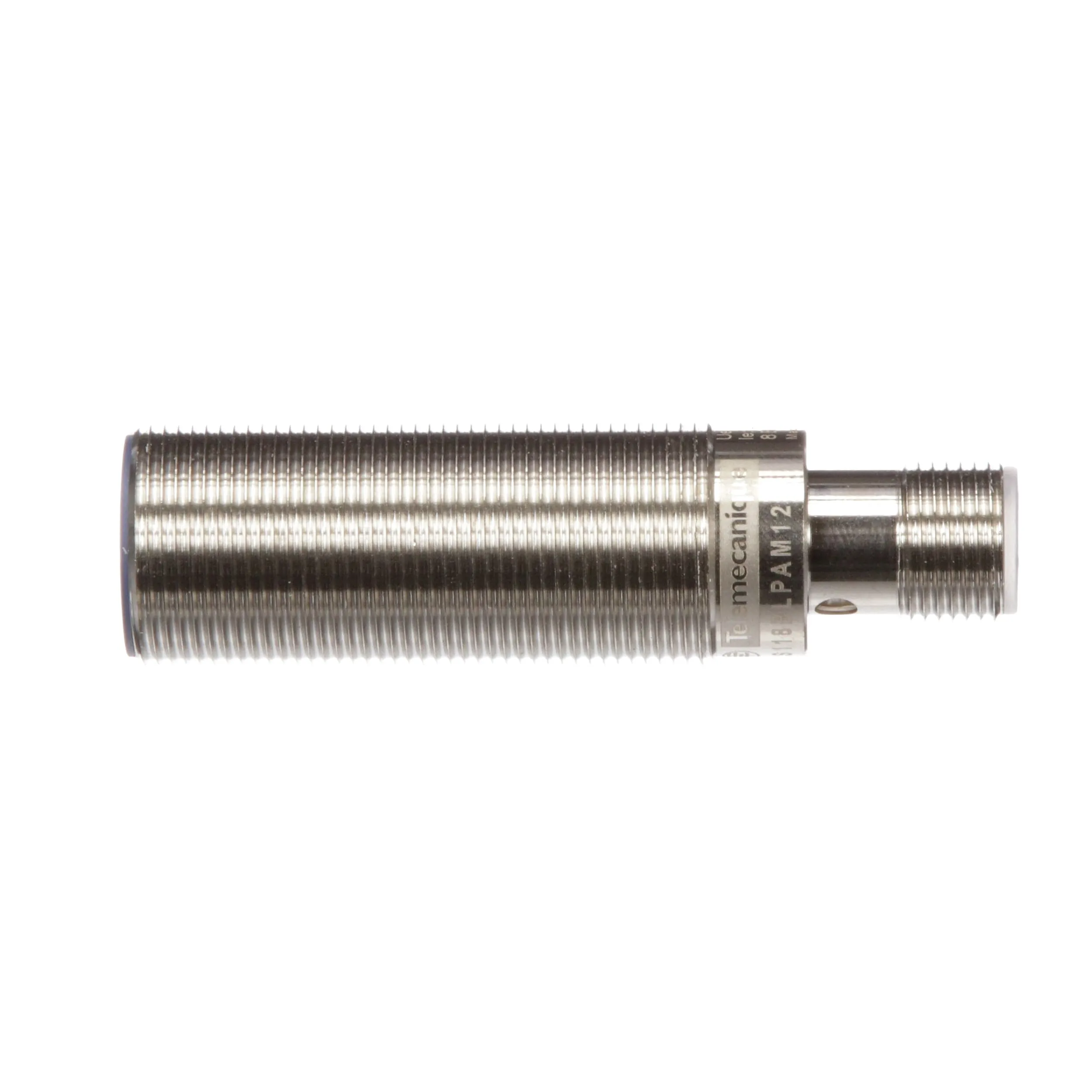

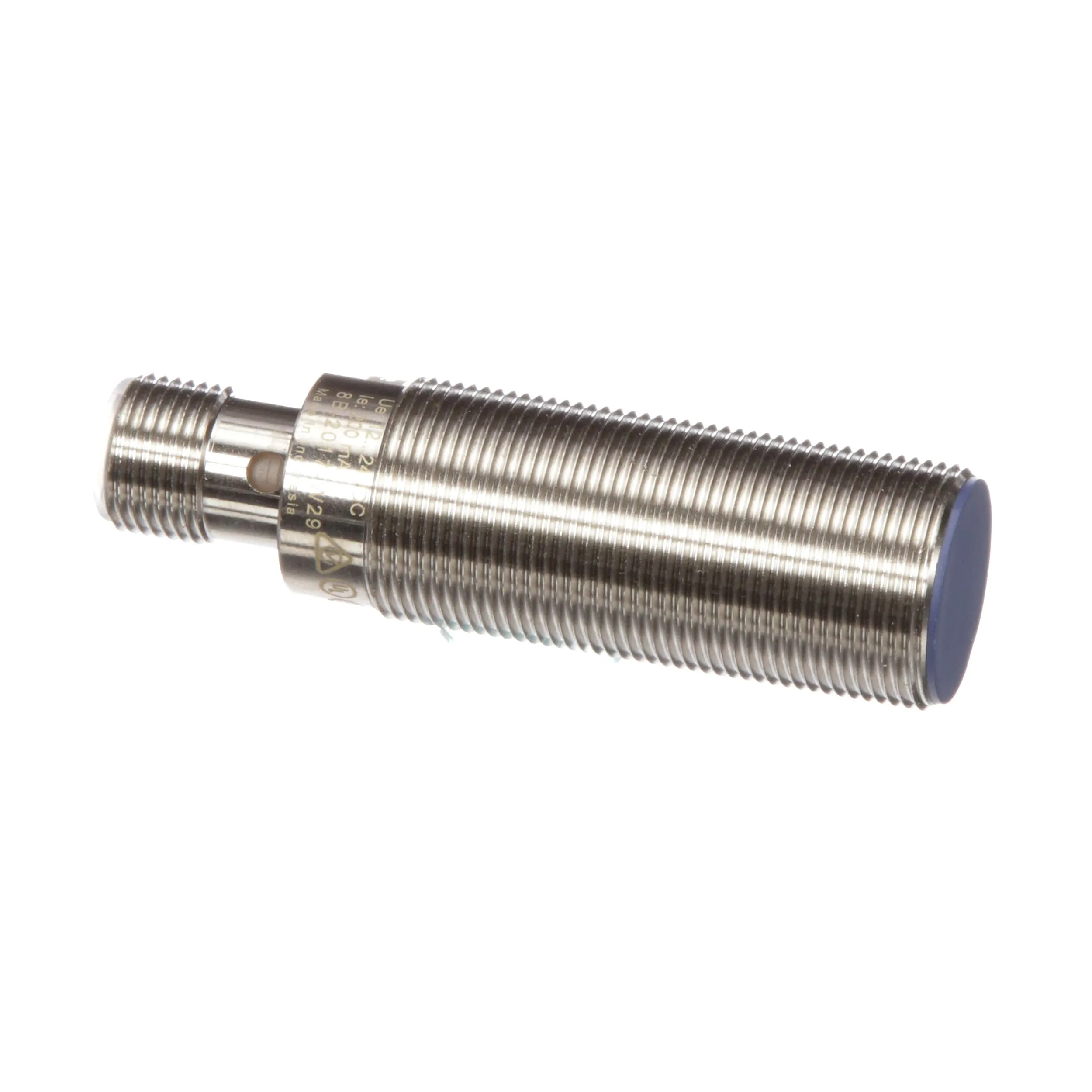

Name: Telemecanique Sensors XS118BLPAM12
SKU: 1013104

Product Details ＋

Product Attribute	Attribute Value
Body Style	Cylindrical
Measurement Range	5 mm
Mounting Type	M18 Threaded Flush
Output	PNP
Primary Type	Inductive Proximity Sensors
Series
Shielding	Shielded
Supply Voltage	10-36 VDC
UPC Code	785901664680

Overview

With Osiprox, intelligent self-teaching of the metal environment simplifies selection and setup, with improved integration in the machine. Applications include, but not limited to, assembly machines, robotics, machine-tools, packaging, materials handling and conveying.

Features:

Flush or Non Flush Mountable Options

Available in Plastic or Metal Housing in 8 mm, 12 mm, 18 mm and 30 mm Barrel Style

Available in Normally Open or Normally Closed Outputs with NPN or PNP Functionality

100 mA Switching Capacity

Specifications:

Sensing Ranges from 2.5 mm (0.09") to 10 mm (0.39")

–20°C to 70°C (–4°F to 158°F)

10 to 36 VDC
