Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XR-012-RS |
| Body Style | Cylindrical |
| Measurement Range | -58 to 392F (-50 to 200C) |
| Sensing Mode | RTD |
| Shop By | Factory Choice |
| Termination | Lead Wire |
| Type | PT100 |
| UPC Code | 5056070948662 |
| Warranty | 3 Year Warranty |
Overview

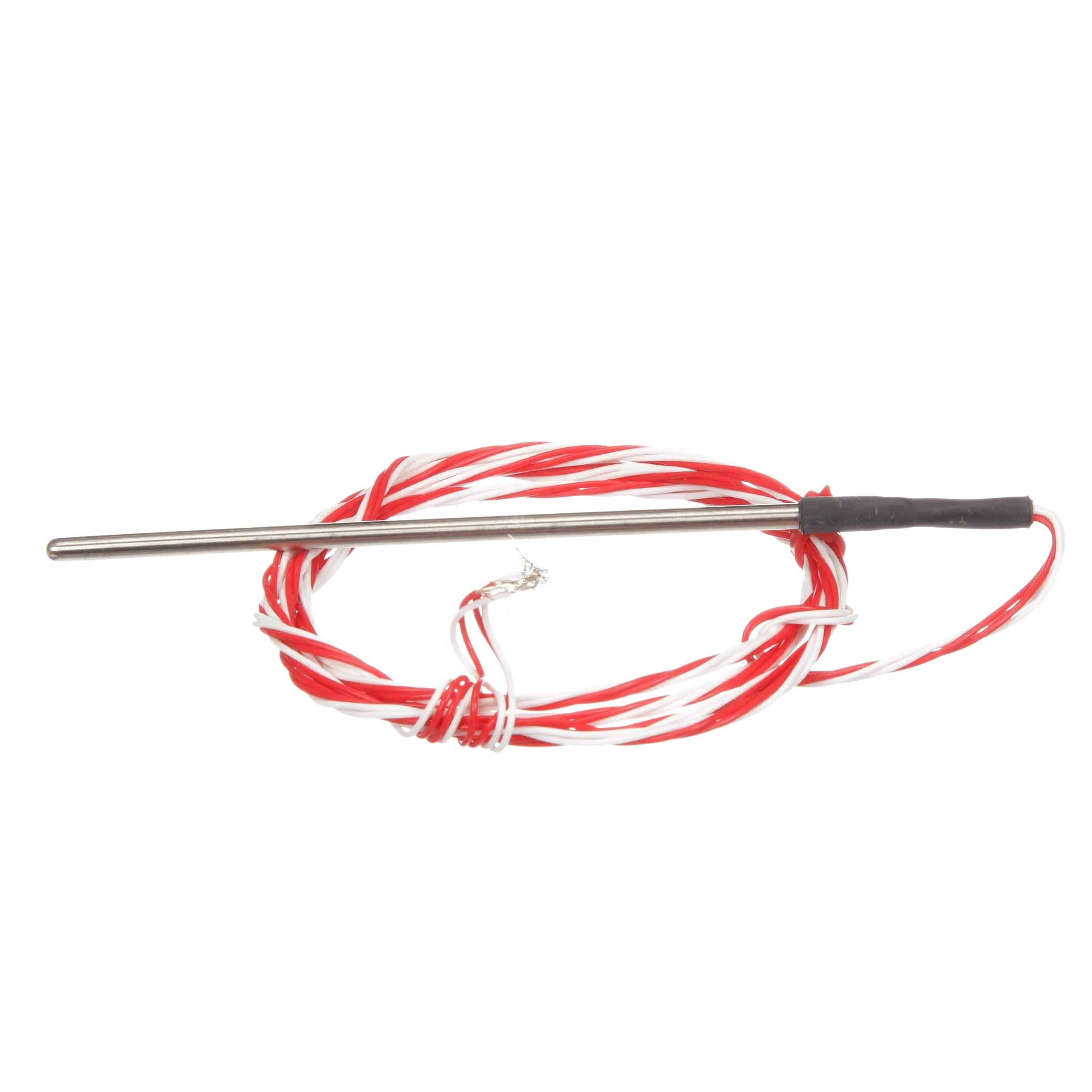

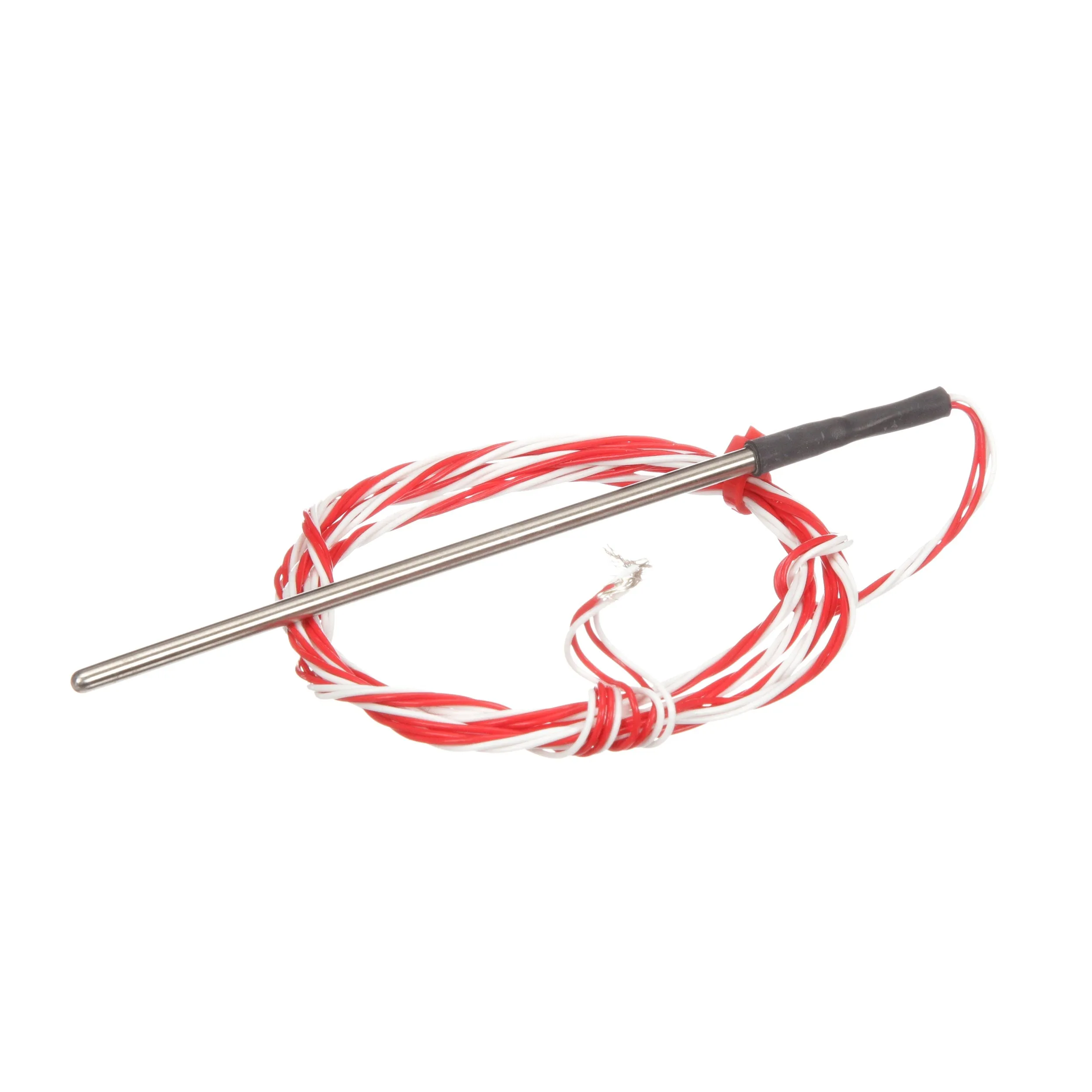

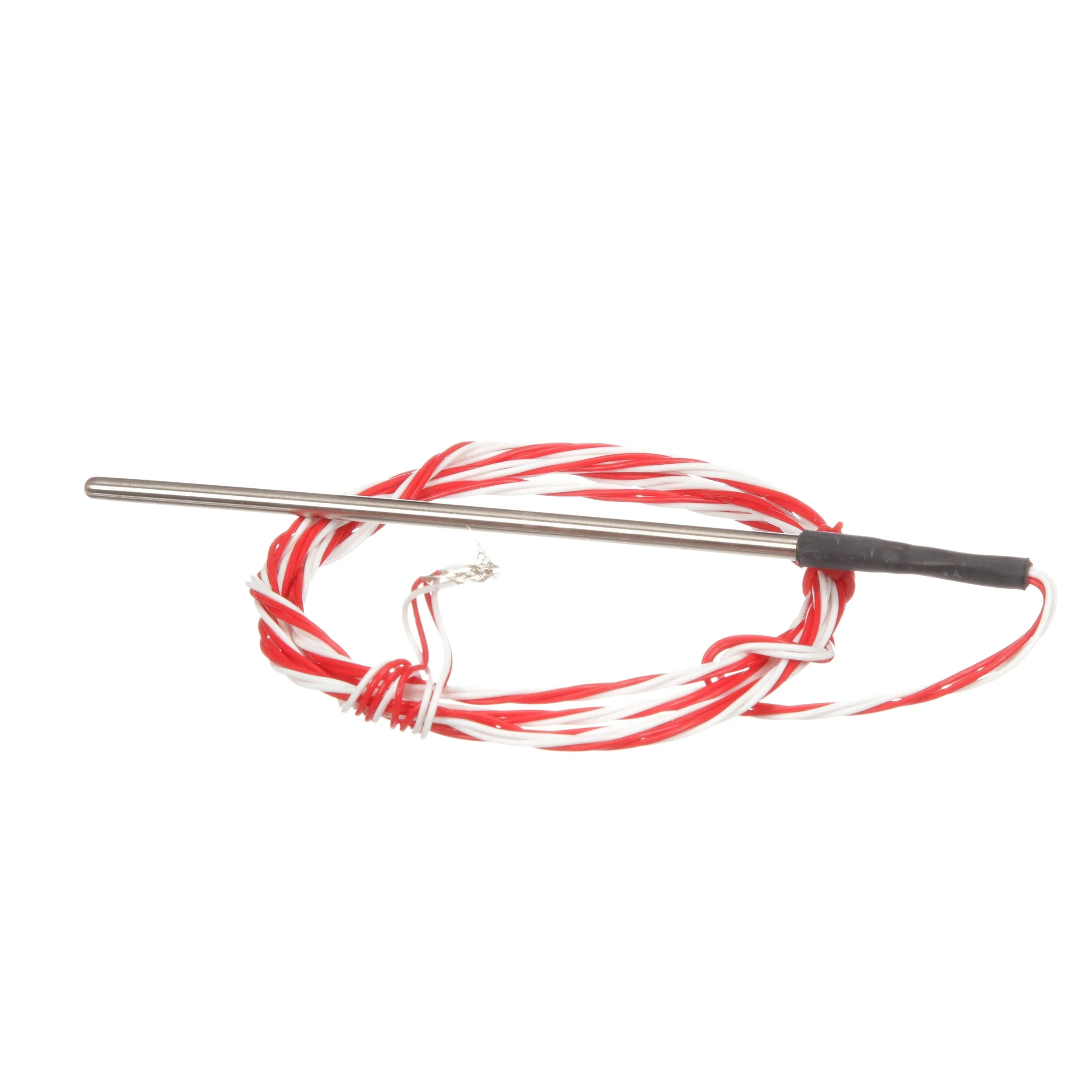

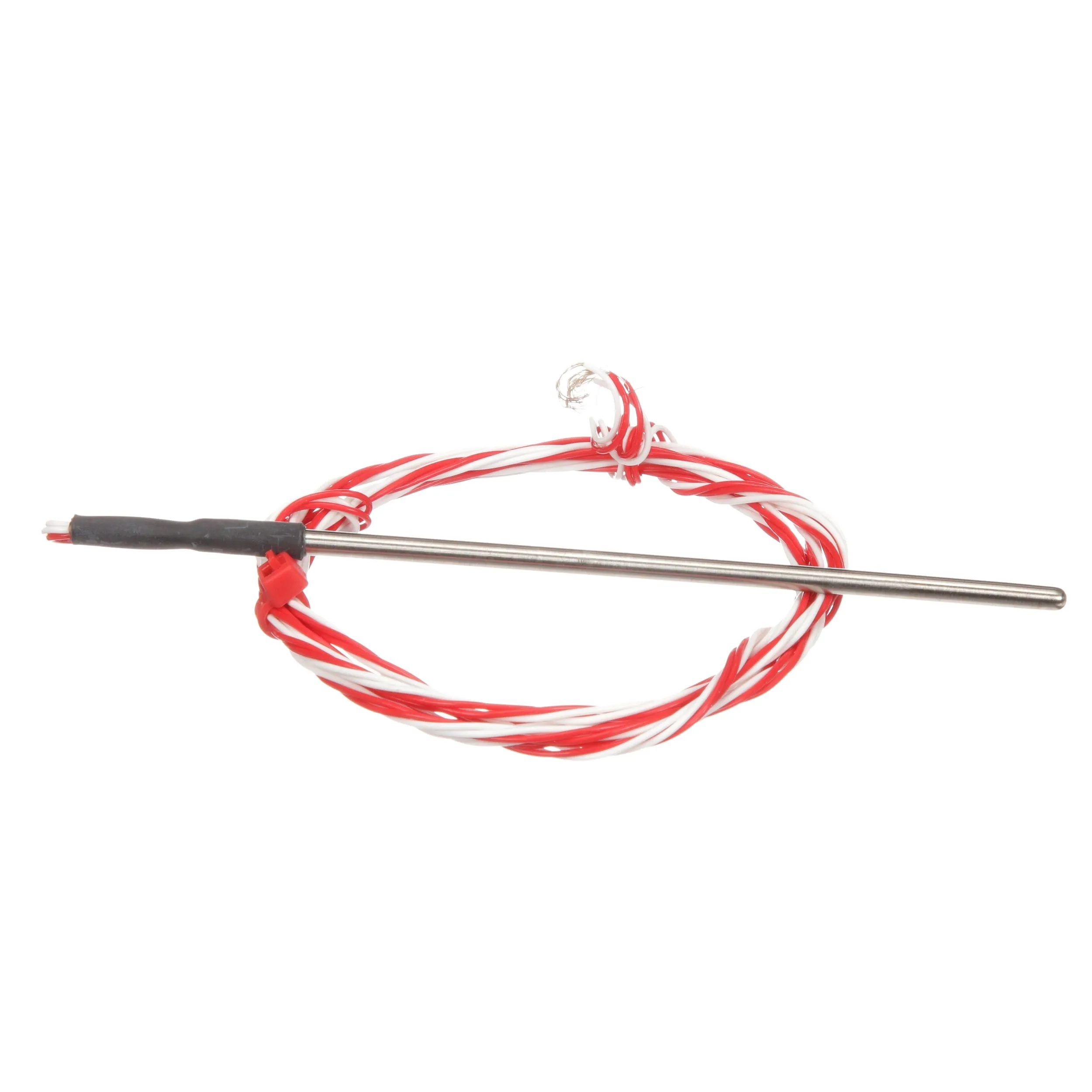

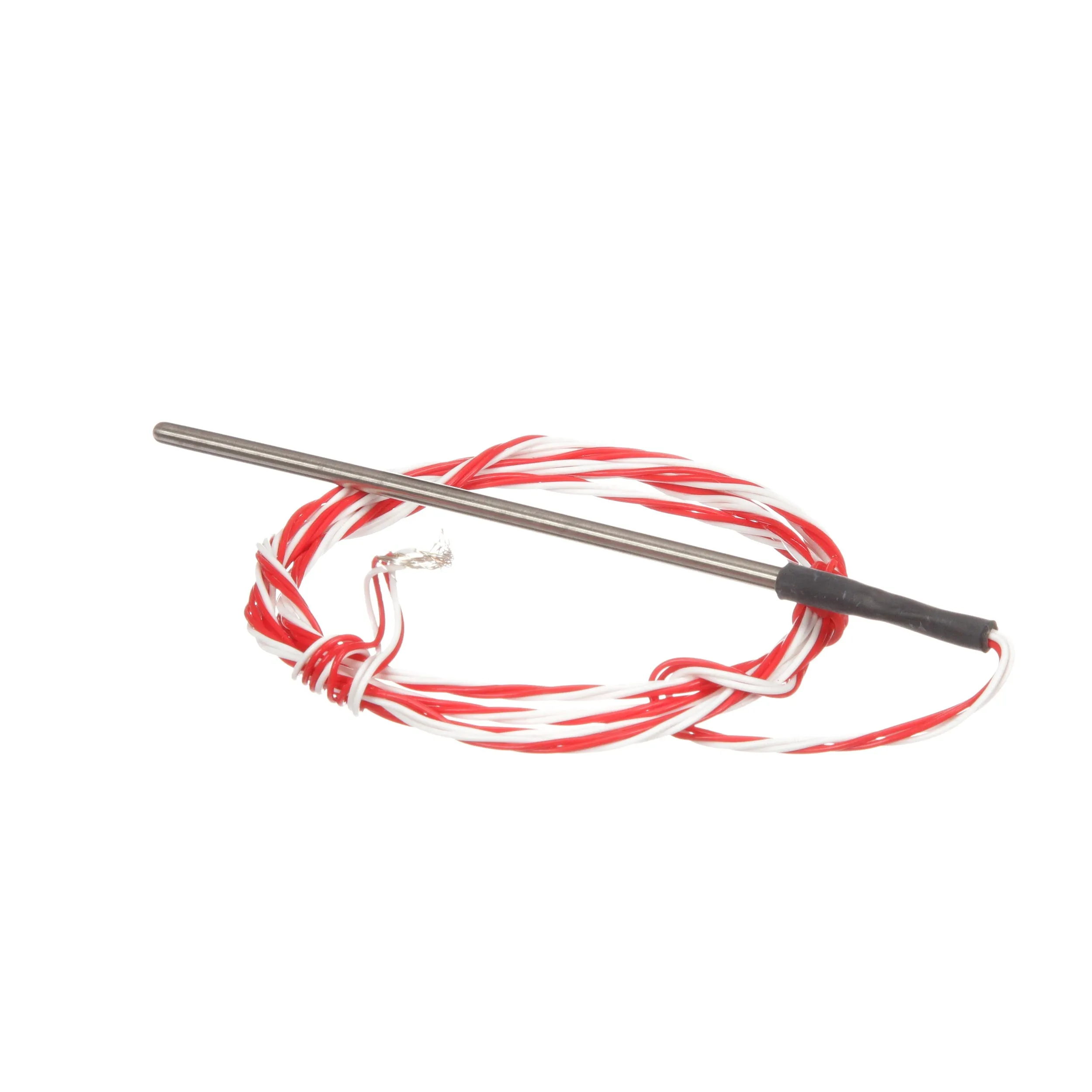

PT100 Sensor
PTFE insulated, PT100 element (to BS1904, class B 100Ω @ 0°C) in a stainless steel (316) sheath
Cable is made up from 7//0.16mm strands
4 wire configuration
Temperature range -50 → 200 °C
1 meter 7/0.16mm Teflon® insulated twisted lead, 4 core
