Description

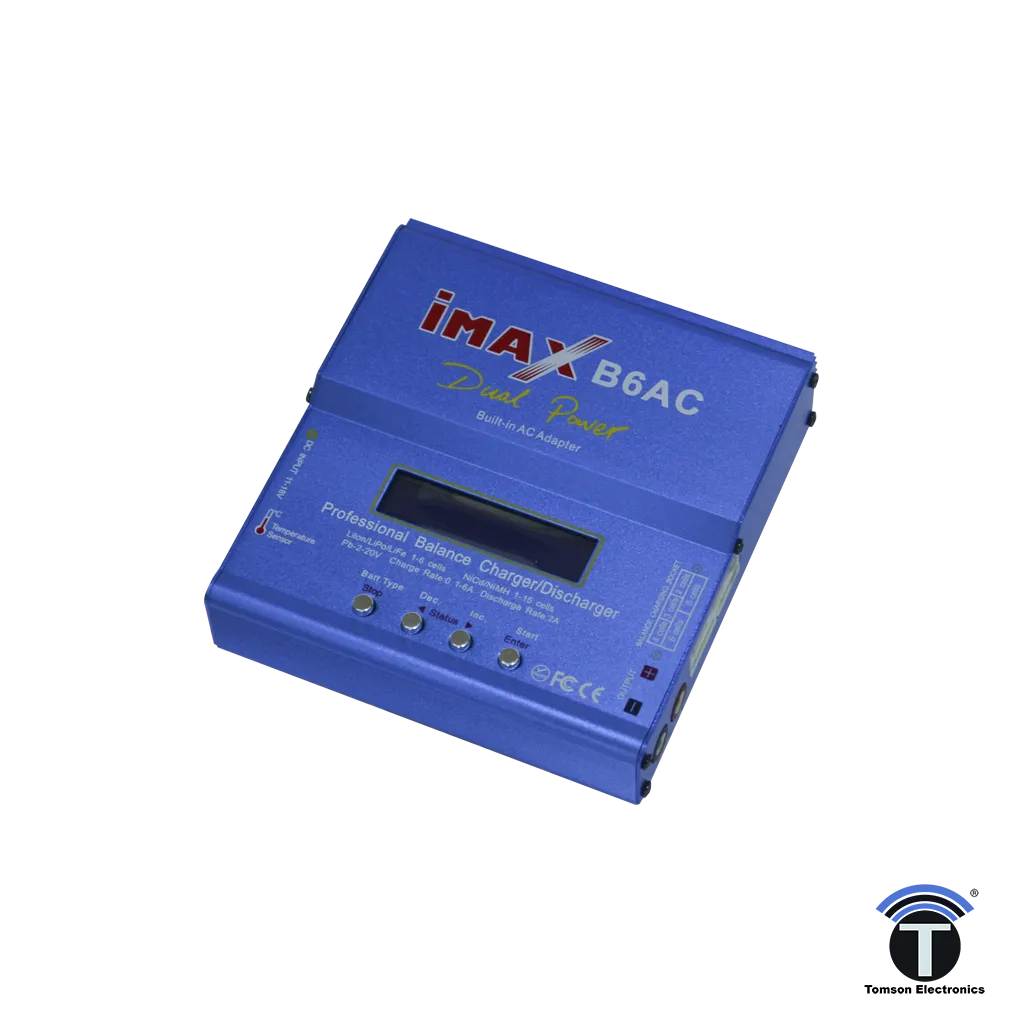

The iMAX-B6AC is a highly versatile, rapid battery charger, discharger, and balancer. It works with NiMH, NiCd, Pb, LiPo, Li-ion, and LiFe batteries, and features an internal independent lithium battery balancer that allows for balance charging and discharging of 2–6 cells. The B6AC has an integrated power adapter that accepts 100–240 VAC (50–60 Hz), which makes it compatible with all standard international mains voltages and frequencies. Alternatively, it can be powered from an 11–18 VDC input (e.g. from a bench-top power supply or a car battery). The charger ships with input power cables, multiple battery connection cables, and a printed instruction manual.

With its versatile charging capabilities, PC control software, and advanced features like input power monitoring, delta-peak sensitivity, cyclic charging and discharging, and more, the IMAX B6AC V2 is a great addition to the workbench of any RC, DIY, or robotics enthusiast.

FEATURES

Accepts AC input from 100-240 V (50–60 Hz) or DC input from 11–18 V
Charges 2–20 V Pb batteries
Charges 1–15 NiMH or NiCd cells
Charges 1–6 LiPo, Li-ion, or LiFe cells
Integrated independent lithium battery balancer for 2–6 cells.
Fast charge and storage mode for lithium batteries.
Charge current range from 0.1–5.0 A (50 W max).
Discharge current range from 0.1–1.0 A (5 W max).
Input power monitor to prevent damage to a car battery when charging in the field
Charge-current limiting (NiMH, NiCd).
Stores up to five user-created program settings.
Cyclic charging/discharging.
Temperature monitoring (requires an external temperature probe not included in this kit)
16×2 character LCD display.
