Product Details
＋

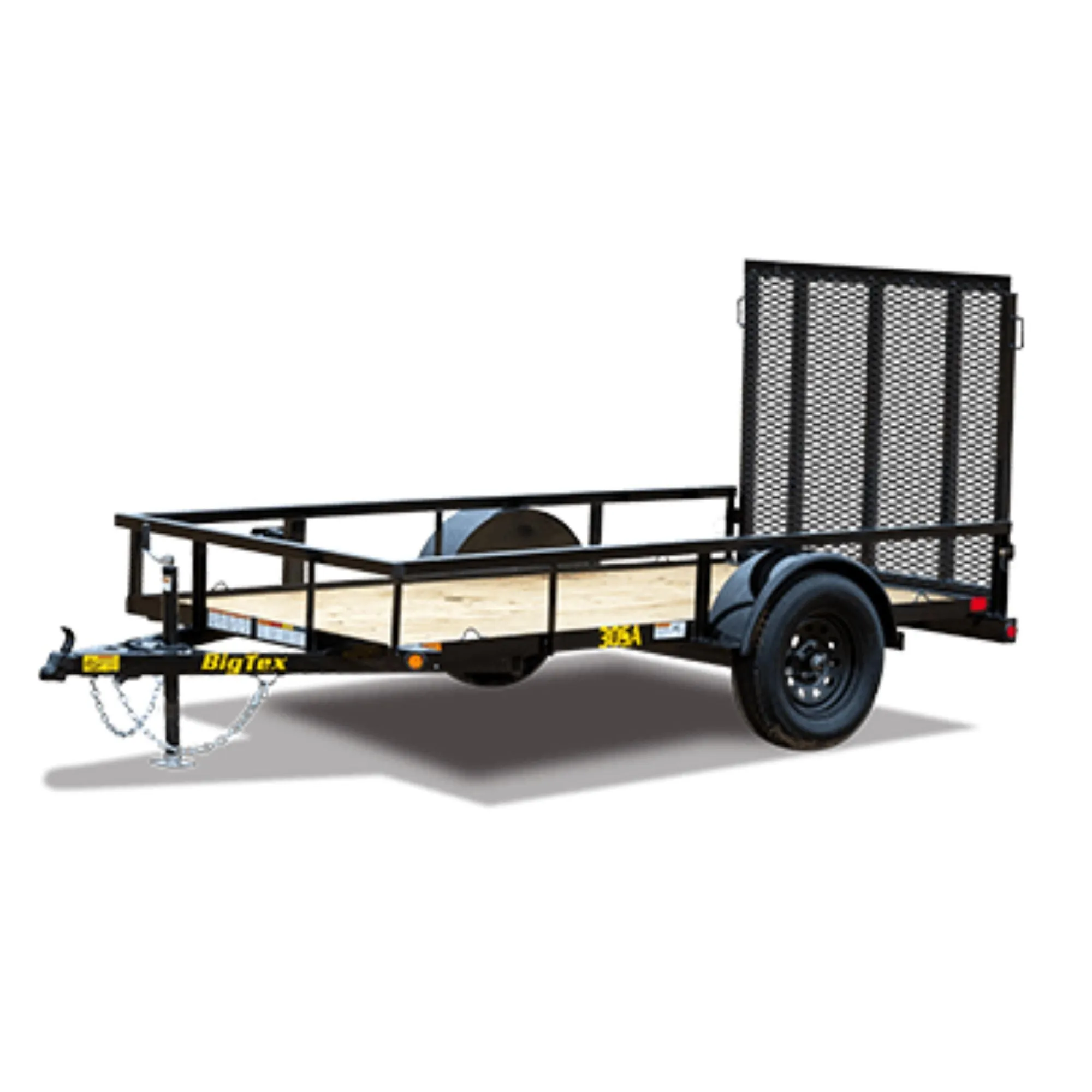

Hauling around the house and garden, unsure about what tasks you’re going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.
| STANDARD FEATURE | AVAILABLE OPTIONS | |
| Axles | 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs | |
| Brakes | Brake Flanges for Easy Brake Addition | Electric Brakes w/ Complete Break-Away Kit |
| Suspension | Multi-Leaf Slipper Spring | |
| Coupler | 2" A-Frame | 2" Forged Coupler |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) | |
| Jack | 2,000# Top Wind, Set-Back Jack with Removable Sand Foot | 2,000# Fold-Up Jack |
| Frame | 3" x 2" x 3/16" Angle | |
| Cross-Members | 3” x 2” x 3/16” Angle | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Fenders | 9" x 32" Rolled Formed w/ Back | |
| Ramps |
|
|
| Stake Pockets | Additional Stake Pockets (Each) | |
| Trailer Plug | 4-Way Flat w/ Loom | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting | |
| Tires | ST205/75 R-15 Load Range C | |
| Bolt Pattern | 5 Bolt | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire | Spare Tire (ST205/75R-15 LR-C) | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black |
|
| Tie-Downs | (4) Tie Down Loops Inside Bed | Additional Tie Loops |
| Sides | 17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail |
|
| MODEL | 30SA-8 |
| PULL TYPE | Bumperpull |
| GVWR | 2995 lbs |
| GAWR (EA. AXLE) | 3500 lbs |
| EMPTY WEIGHT | 663 lbs |
| CARGO CAPACITY | 2332 lbs |
| BED LENGTH | 8' |
| BED WIDTH | 60" |
| A | 97-1/2" |
| B | 61" |
| C | 36-1/2” |
| TONGUE LENGTH | 36-1/8" |
| MODEL | 30SA-10 |
| PULL TYPE | Bumperpull |
| GVWR | 2995 lbs |
| GAWR (EA. AXLE) | 3500 lbs |
| EMPTY WEIGHT | 723 lbs |
| CARGO CAPACITY | 2272 lbs |
| BED LENGTH | 10' |
| BED WIDTH | 60" |
| A | 121-1/2” |
| B | 73” |
| C | 48-1/2” |
| TONGUE LENGTH | 36-1/8" |
