Manufacturer Cat No: 182-012-11

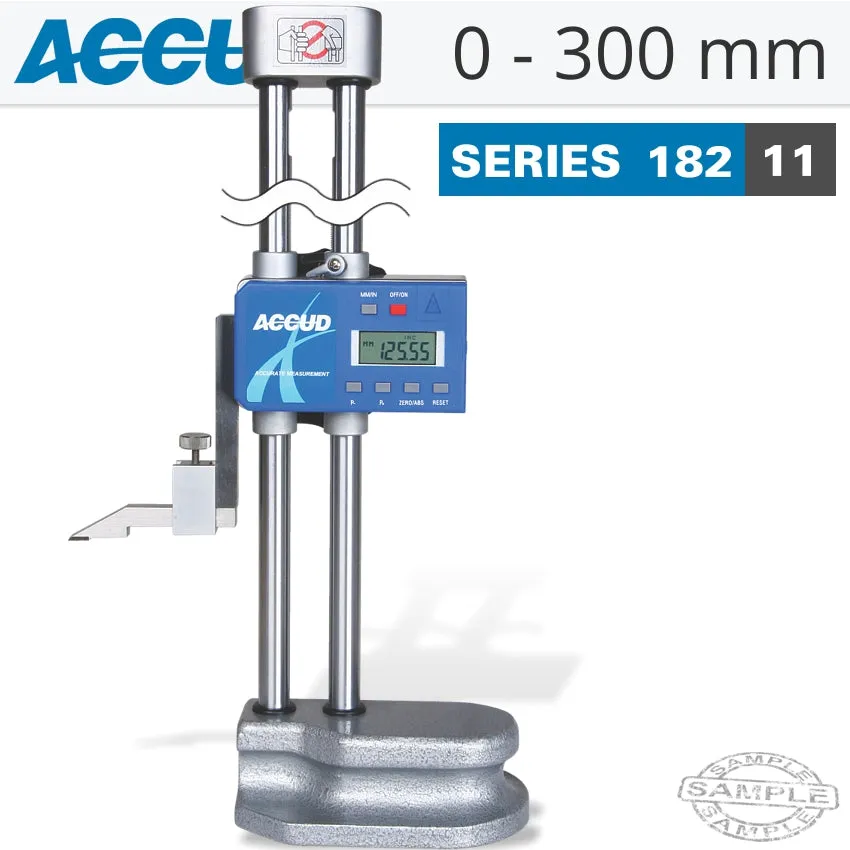

Digital Height Gauge with Data Output

Workshop electronic/digital two-column height gauge by ACCUD, measuring range 0-300mm | 12' and resolution 0.01mm | 0.0005'.

The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value.

Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.

Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.

Made of stainless steel.

Features at a glance

• Made of stainless steel (except the base)
• Resolution: 0.01mm/0.0005'
• Buttons: on/off, inch/mm, ABS/INC, data preset, set data
• With driving wheel
• USB data output
• Optional accessory: 267 series clamps (not included)
• Carbide tipped scriber
• Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset



Technical parameters:

Description	Spec
Measurement range:	0-300mm / 12 in
Resolution:	0.01 mm / 0.0005 '
Accuracy:	/- 0.04 mm
Mm / inch switch:	YES
ABS / INC function:	YES
On / Off / Zero button:	YES
Travel lock:	YES
Fine adjuster:	YES
HOLD function (hold result):	YES
Data output socket:	YES
Dimension a1:	135 mm
Dimension a2 :	43 mm
Dimension c :	33 mm
Dimension Ød	15 mm
Dimension h :	84 mm
Dimension L:	475 mm
Construction:	stainless steel tracer tip - carbide



---
